December 4, 2012
Jali Pavilion Reinstallation
Remember the pavilion on top of the Mughal Suite at Shangri La? It is being reinstalled! The pavilion includes the openwork marble panels, or jalis, that were commissioned in India in 1935 and broke in transit to Hawai‘i. Doris Duke commissioned another set for her bedroom suite, patched together the broken jalis, and had her architect design a rooftop pavilion around them. The rooftop jalis are supported by decorative concrete surrounds (frames), all of which had to be removed in order to complete the 2011 roof work over the Mughal Suite and Moroccan Room. In the course of removal, the deteriorated adhesive used in the 1930s repair gave way. Two years ago, the fragmented panels were packed in crates and stored on the tennis court.

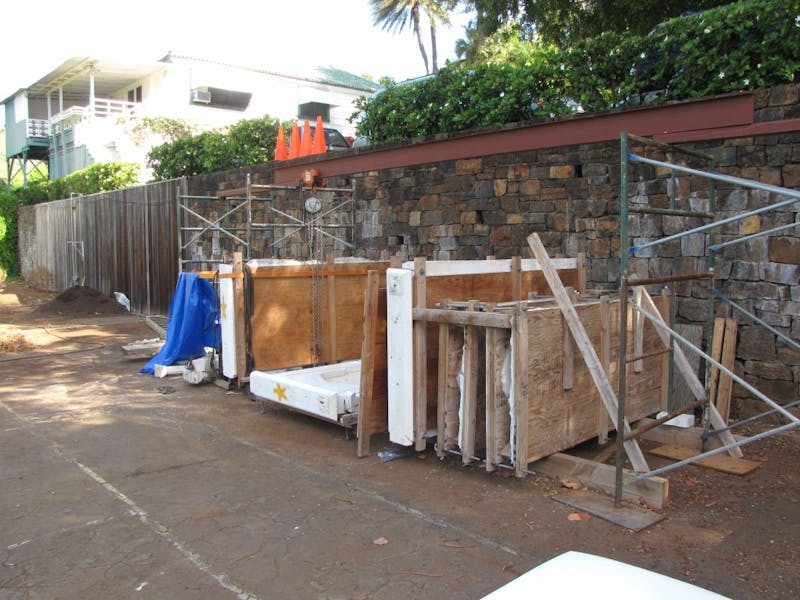

The crated panels stored on the tennis court, 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
Linda Gue making small repairs, April 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
The marble panels being reassembled at the Spectra workshop, October 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
Newly cast elements ready for shipping, October 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
In April of 2012, we unpacked the panels one by one to document their condition and develop our systems for cleaning and repair. Working with interns Kat Harada and Liane Ikemoto, and Collections Technician Linda Gue, most of the jalis were cleaned and initial repairs begun.
In May, the jalis and sections of the concrete surrounds were shipped to Spectra, an architectural firm in Pomona, California, so they could replicate the old cast concrete surrounds and complete the marble repairs using a structural epoxy adhesive.
I made three trips to Pomona to assist with and inspect the marble repair work. The new system is deliberately designed so that, in the future, the marble jalis can be removed from their cast concrete surrounds without destroying them. This required the fabrication of 17 new silicone rubber molds and 132 newly cast elements.
In early November all of the pieces returned to Hawai‘i, and the first crates were delivered to Shangri La on Monday, November 26.
With a small crane, the crates (73 crates weighing 80,000 pounds total) were lifted from the entry courtyard, over the private garden and onto the roof. By Wednesday afternoon, unpacking was completed and the first of the new columns was ready to be installed.
With the reinstallation of the Jali Pavilion, we are returning one of Shangri La’s truly character-defining features. Stay tuned for updates as the work proceeds.
The crane emerging from the trees with another crate, November 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
Unpacking cast elements on Tuesday afternoon, November 27, 2012. Doris Duke Foundation for Islamic Art, Honolulu, Hawai‘i. (Photo: Kent Severson.)
